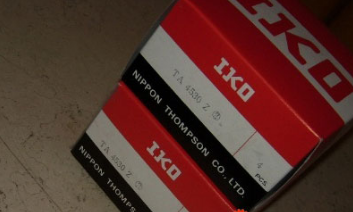

IKO Number: TA 4530Z

Mass (Ref.): 122 g

Assembled inner ring: IRT 4030

Fw: 45 mm

D: 55 mm

C: 30 mm

Shaft dia. h6max.: 45 mm

Shaft dia. h6min.: 44.984 mm

Housing bore dia. J7max.: 55.018 mm

Housing bore dia. J7min.: 54.988 mm

Dynamic, C: 47.7 kN

Static, C0: 96.6 kN

Allowable rotational speed: 7500 rpm
